Smoke, gas and dust extraction systems

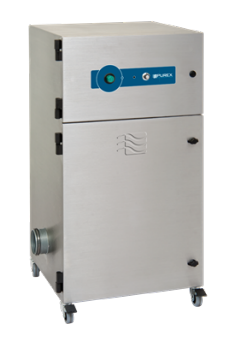

Alpha-400

Sauganschluss (links)
Labyrinth bag pre-filter
Main filter (HEPA part)
Main filter (activated carbon part)
Clean air outlet (rear)
Filter interlock
Filter type plate

Suction system for applications with a maximum suction volume requirement of 250m³/h

Three-stage filtration

The devices extract the air pollutants, filter out harmful particles and gases using a three-stage process and return the purified air to the workplace.

Filter stages:

Labyrint bellows bag coarse particle filter
HEPA fine dust filter with pre-filter fleece
Activated carbon filter

Technical data

Technical data		Alpha-400
Item number		103.086.AL4.102
Tension		230V ±10%
Power consumption		0.24kW
Frequency		50/60Hz
Noise development		45dBA
Throughput (maximum)		400m³/h
Negative pressure (maximum)		4.0kPa
Dimensions W x D x H		465x430x885mm
Weight (incl. filter)		55kg
Suction connection Ø		80mm

Data sheet.PDF ->

Properties

Fully automatic flow control to maintain a constant suction flow until the filter is completely saturated
Infinitely adjustable suction power
Integrated labyrinth bellows bag filter for capturing large particles
Vorfiltermatte zum Schutz des HEPA Filters
Combined HEPA/activated carbon filter for absorbing fine dust and neutralising process gases
Easy visual and acoustic identification of the filter status thanks to VariColour™ Warn System
Optional:
- Error signal to connected machines when a fault occurs
- Remote on/off switch
