Suction adaptations
Standard range Ø38
- 2m Flexible hose Øi 50mm
- Table clamp
- Foot valve
- 1m Flexible stainless steel arm Øi 38mm
- Pipe nozzle Øi 38mm
- Tapered sleeve Øi 38 / Øi 95mm
- Also available in ESD version
Table clamp
- Wingspan 70mm
- Width 110mm
Table screw fixing
- Width 160mm
- Depth 225mm
Flexible hose
- Oi 50mm
- Length 2000mm
- Antistatic
- 2 rubber couplings Øa 51mm
Rubber coupling
- 51mm diameter
- Length 99mm
- Antistatic
Foot valve
- Oi 50mm
- Antistatic
- Lockable
Flexible stainless steel arm
- Hi 38mm
- Length 650mm
- Connection to foot valve
Flexible stainless steel arm
- Hi 38mm
- Length 1000mm
- Connection to foot valve
Flexible stainless steel arm
- Hi 38mm
- Length 1500mm
- Connection to foot valve
Nozzle
Plug-in attachment for flexible stainless steel arm Øa 38mm
- Connection Øi 38mm
- Nozzle Ø25mm
- Length 145mm
Nozzle
Plug-in attachment for flexible stainless steel arm Øa 38mm
- Connection Øi 38mm
- Nozzle Ø32mm
- Length 145mm
Nozzle
Plug-in attachment for flexible stainless steel arm Øa 38mm
- Connection Øi 38mm
- Nozzle Ø 38mm
- Length 145mm
Conical funnel
Plug-in attachment for flexible stainless steel arm Øa 38mm
- Connection Øi 38
- Funnel Ø 83mm
- Length 134mm
Conical funnel
Plug-in attachment for flexible stainless steel arm Øa 38mm
- Connection Øi 38
- Funnel Ø 90mm
- Length 132mm
Conical funnel
Plug-in attachment for flexible stainless steel arm Øa 38mm
- Connection Øi 38
- Funnel Ø 95mm
- Length 90mm
Slot nozzle
Plug-in attachment for flexible stainless steel arm Øa 38mm
- L x W x H 205x150x65mm
- Nozzle width 190x6mm
Transparent cover
Plug-in attachment for flexible stainless steel arm Øa 38mm
- LxTxH 315 x 265 x 165mm
Dust collector - black
Connection with foot valve to flexible hose Inner Diameter 50mm
- Antistatic
- BxHxT 450 x 130 x 225mm
Collection nozzle - clear view
Connection with foot valve to flexible hose Øi 50mm
- BxHxT 450 x 130 x 225mm
Reducer
for connecting a suction hose Øi 53mm to the connection flange of the extraction Øa 80mm
Reducer
Reducer
Reducer
Reducer
Collector's item
Exhaust adapter
Article no.: 190.040 – for systems 200 / 400
Article No.: 190.039 – for systems 800
Article no.: 640.002 – for systems 1500 / 2000
Ball brush
Extendable ball brush, Ø 40mm, soft, for cleaning flexible stainless steel arms
and intake manifolds with Ø 30 – 38mm
Ball brush
Extendable ball brush, Ø 65mm, soft, for cleaning flexible stainless steel arms
and intake manifolds with a diameter of 50 – 60mm
Extension
Handle with extension for connecting the ball brush,
Length 1500mm

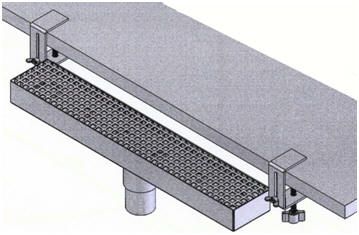

Special adaptations
Properties
- Ideal for extracting glue fumes, etc.
- Connection to the existing extraction system
- Stainless steel version
- Table clamp mount for table tops up to 69mm thick
- Working height freely adjustable from tabletop 59mm downwards
- Slide valve for shutting off the extraction
- Removable grille for easier cleaning
- Consistent suction power across the entire working area
Technical data
| Item number | 103.116.001.000 |
| Hose connection size | Ø60mm or Ø50mm |
| Dimensions LxDxH | 600 x 100 x 50mm |
| Slide valve LxDA | 120 x 57 mm |
| Table clamp fastening | |
| Wingspan | 5 to 69mm |
| Height adjustment | 0 to -59mm |
Technical modifications and custom designs on request.
