Smoke, gas and dust extraction systems

Connection sets

Connection sets for 9000- 200/400, 200i/400i, Alpha

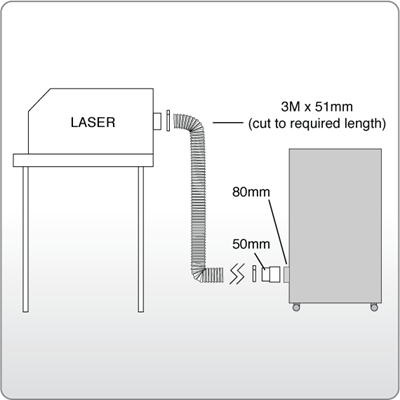

3m engraving laser set, Ø50mm

Item no.: 120.285

1x Ø80 / 50mm reducer
1x Ø50mm x 3m flexible hose
2x Ø45 - 60mm hose clamp

3m engraving laser set, Ø80mm

Item no.: 120.299

1x Ø80mm double socket
1x Ø80mm x 3m flexible hose
2x Ø70 - 90mm hose clamp

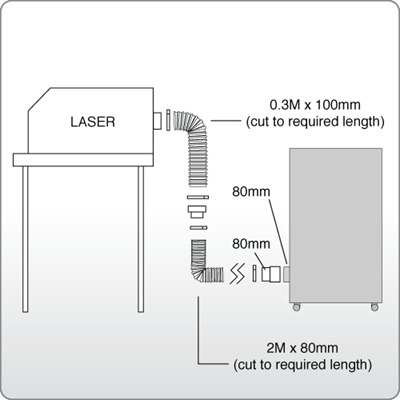

2.3m engraving laser set, Ø100mm

Item no.: 120.288

1x Ø80mm double socket
2x Ø70 - 90mm hose clamp
1x Ø80mm x 2m flexible hose
1x Ø100 / 80mm reducer
1x Ø100mm x 0.3m flexible hose
2x Ø90 - 120mm hose clamp

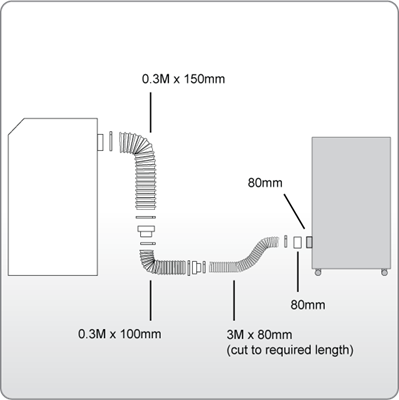

3m engraving laser set, Ø150mm

Item no.: 120.289

1x Ø80mm double socket
2x Ø70 - 90mm hose clamp
1x Ø80mm x 3m flexible hose
1x Ø100 / 80mm reducer
1x Ø100mm x 0.3m flexible hose
2x Ø90 - 120mm hose clamp
1x Ø150 / 100mm reducer
1x Ø150mm x 0.3m flexible hose
2x Ø130 - 160mm hose clamp

3m coding laser set, Ø50mm

Item no.: 100.032

1x Ø80 / 50mm reducer
1x Ø50mm x 3m flexible hose
2x Ø50mm rubber sleeve

6m coding laser set, Ø50mm

Item no.: 100.043

1x Ø80 / 50mm reducer
1x Ø50mm x 6m flexible hose
2x Ø50mm rubber sleeve

3m coding laser set, 2x Ø50mm

Item no.: 100.039/100.043

1x Ø80 / 2x 50mm collector piece
1x Ø50mm x 6m flexible hose
2x Ø50mm rubber sleeve

Laser connection sets for 9000- 800i

Laser connection set for 9000- 1500i/2000i

Laser connection sets for Xbase

Get in touch

Further connection sets for existing pipe systems with different diameters and individual parts are available on request.
