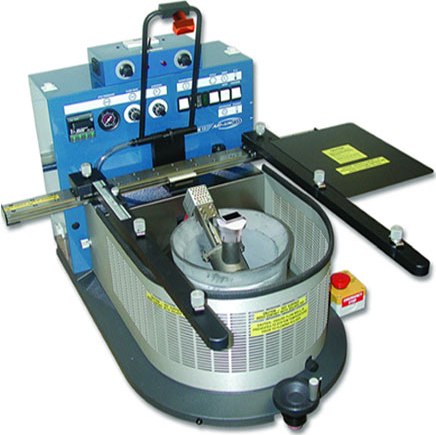

For selective soldering multipole components in the through-hole technology.
The soldering and desoldering devices of the PCBRM series are particularly suitable for: repairs, prototyping, retrofitting, soldering.
For applications in through-hole technology for selective soldering and desoldering. Reproducible results by programmable parameters.
Applications
For repair, prototyping, selective soldering, retrofit and smaller production units in the full range of through-hole technology applications for selective soldering and desoldering.
Defective components can be removed and new components soldered in. Suitable for very densely packed circuit boards, mixing molds and / or double-sided or multi-layer circuit boards.
Reproducible results
Parameters such as soldering temperature, cycle time, wave height, heating and cooling ramp can be entered, programmed and stored and provide user-independent and reliable soldering results.
The parameters are entered via the control panel, up to 10 programs can be stored and retrieved as required.
Technical specifications | PCBRM15 |
Board Size max. | 550 x 500mm |
Control range | 50 - 310°C |
Compressed air | 1 - 8bar |
Voltage | 230V / 50-60Hz |
Power | 2500W |
Solder quqntity | 16kg |
Heating time | ca. 30min |
Dimensions bxtxh | 813 x 813 x 660mm |
Weightinkl. Lot | 57kg |
